ATI V-Auto Wireless Vickers Hardness Tester

£0.00

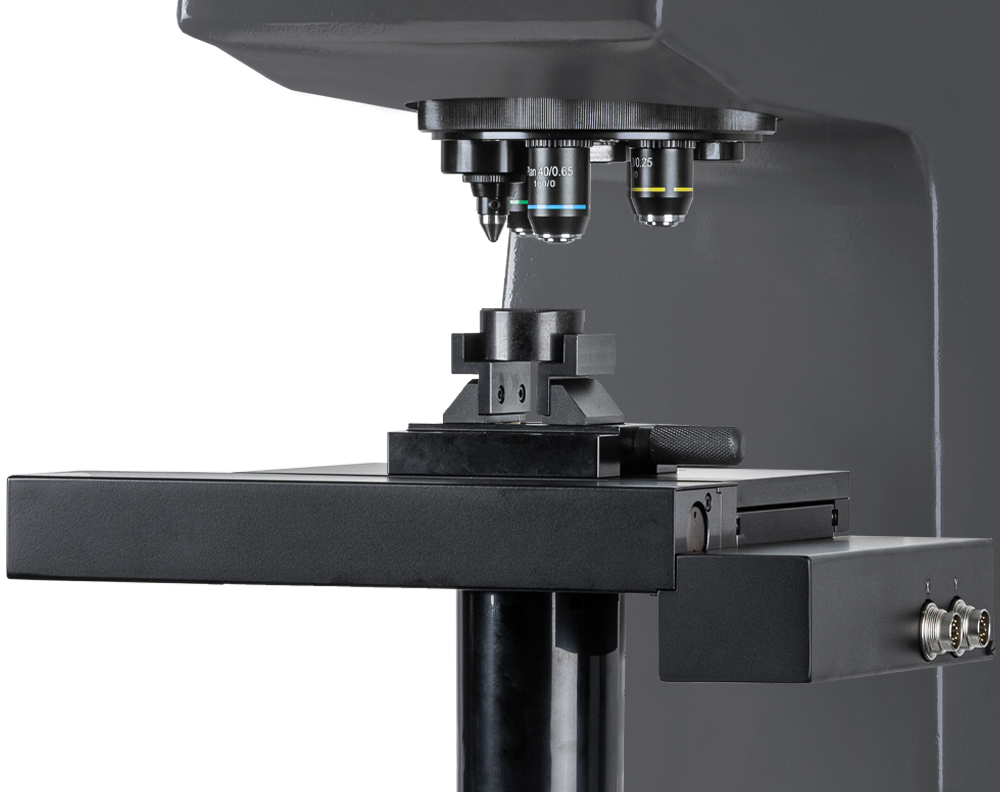

ATI V-Auto Wireless Vickers Hardness Testeris an Automatic Vickers, micro Vickers and Knoop Hardness Tester, engineered to meet the rigorous standards set forth by ASTM E92 and E384. This advanced testing instrument employs a high-precision load cell and Closed-Loop electronic control with a 1 KHz sampling rate, ensuring optimal accuracy and reliability. One START button to get start the entire test cycle with display of the results. Fully automatic test cycle with automatic succession of each phase without interruption. Direct image of indentation with manual or automatic measuring on-board. Turret at 5 positions with automatic selection of indenters and objective lens, depending on the selected scale. ATI V-Auto is equipped with a motorized X-Y-Z table and auto-focus for multi indentation cycle.

The ATI V Auto Wireless Vickers Hardness Tester has :-

  • One START button to get start the entire test cycle with display of the result without operator intervention.

  • Fully automatic test cycle with automatic succession of each phase without interruption.

  • Load forces controlled electronically in “Closed-Loop” .

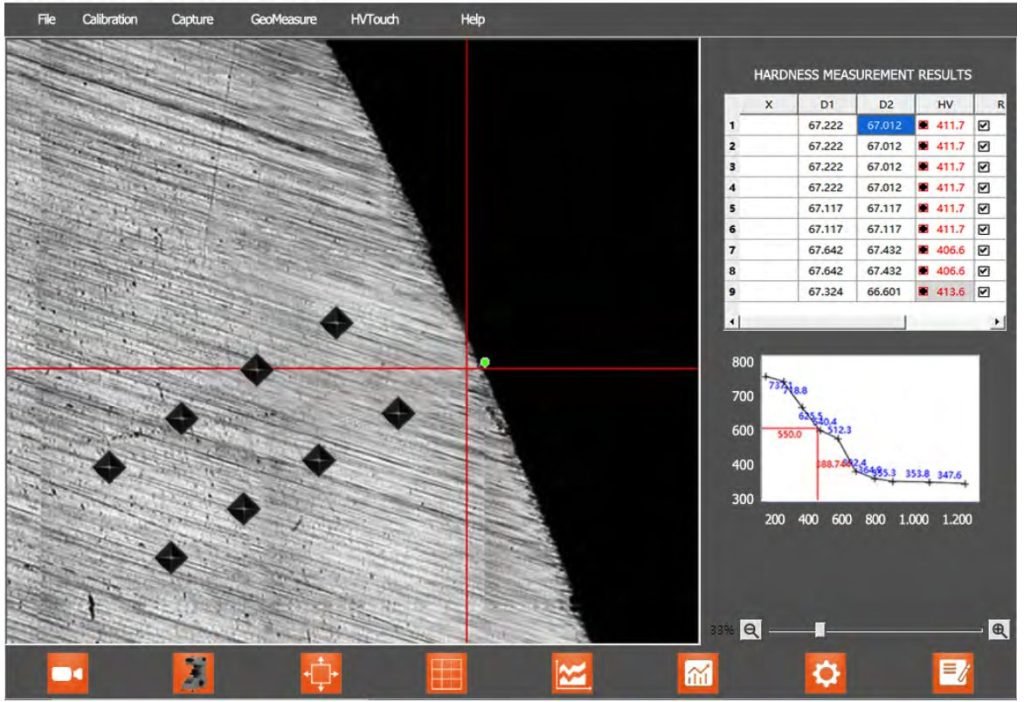

  • Direct image of indentation with manual or automatic measuring on-board.

  • Turret at 5 positions with automatic selection of lens-indenters depending on the selected scale.

  • Interactive magnification from x15 to x800 for each lens.

  • Memory for data and image storage.
    Creation of statistical graphs and technical reports.

  • 11.5” ultra HD display with touch screen and digital keyboard.

  • 1,3 Mp camers SHD.

  • Software with interface Windows and 10.2 GM of memory.

  • Ethernet and USB connection for data export and remote control.

  • Remote control for self-diagnosis and software update service.
    Suitable for all laboratory and production environments.

ATI V-Auto Wireless Vickers Hardness Testeris an Automatic Vickers, micro Vickers and Knoop Hardness Tester, engineered to meet the rigorous standards set forth by ASTM E92 and E384. This advanced testing instrument employs a high-precision load cell and Closed-Loop electronic control with a 1 KHz sampling rate, ensuring optimal accuracy and reliability. One START button to get start the entire test cycle with display of the results. Fully automatic test cycle with automatic succession of each phase without interruption. Direct image of indentation with manual or automatic measuring on-board. Turret at 5 positions with automatic selection of indenters and objective lens, depending on the selected scale. ATI V-Auto is equipped with a motorized X-Y-Z table and auto-focus for multi indentation cycle.

The ATI V Auto Wireless Vickers Hardness Tester has :-

  • One START button to get start the entire test cycle with display of the result without operator intervention.

  • Fully automatic test cycle with automatic succession of each phase without interruption.

  • Load forces controlled electronically in “Closed-Loop” .

  • Direct image of indentation with manual or automatic measuring on-board.

  • Turret at 5 positions with automatic selection of lens-indenters depending on the selected scale.

  • Interactive magnification from x15 to x800 for each lens.

  • Memory for data and image storage.
    Creation of statistical graphs and technical reports.

  • 11.5” ultra HD display with touch screen and digital keyboard.

  • 1,3 Mp camers SHD.

  • Software with interface Windows and 10.2 GM of memory.

  • Ethernet and USB connection for data export and remote control.

  • Remote control for self-diagnosis and software update service.
    Suitable for all laboratory and production environments.

Model: ATI V-Auto

Compliance standards: ISO 6507, ASTM E92 and E384

Range force ATI V1:10 – 25 – 50 – 100 – 200 – 300 – 500 – 1000 gr (0,098 – 0.24 – 0.49 – 0.98 – 1.96 – 2.94 – 4.90 – 9.81 N)

Range force ATI V10:25 – 50 – 100 – 200 – 300 – 500 gr – 1- 2 – 5 – 10 Kg (0.24 – 0.49 – 0.98 – 1.96 – 2.94 – 4.90 – 9.81 – 19.6 – 49.03 – 98.06 N)

Range force ATI V30:100 – 200 – 300 – 500 gr – 1- 2 – 5 – 10 – 30 Kg (0.98 – 1.96 – 2.94 – 4.90 – 9,81 – 19.6 – 49.03 – 98.06 – 294.19 N)

Range force ATI V50:200 – 300 – 500 gr – 1 – 2 – 5 – 10 – 30 – 50 Kg (1.96 – 2.94 – 4.90 – 9,81 – 19.6 – 49.03 – 98.06 – 294.19 – 490.33 N)

Force control system:Electronic control of load cells in “Closed-Loop”

Dwell time:1-99 seconds

Resolution:0,001 mm

Motorized turret:Up to 6 positions: 2 indenters (standard Vickers and Knoop on request) and 4 objectives (including 5X, 10X, 20X and 40X) (depending on the models)

Objectives lens:10X, 20X and 40X are standard and 5X objective on request

Field of vision:120X : effective field of view 400µm and minimum measuring unit 0.03µm – 40X : effective field of view 200µm and minimum measuring unit 0.02µm

Auto-focus:Automatic (just for ATIV AUTO)

Optical magnifications:50X , 100X , 200X and 400X (depending on the models)

Height capacity:210 mm (without XY table)

Depth capacity:135 mmX-Y table:

Motorized table (just for ATIV AUTO); Art. A055.0.010 travel 50x50mm, Art. A055.0.008 travel 100x100mm

Display:11,5” UHD dislay with multicolor touch screen

Camera:1,3 MP UHD

Data storage:2GB

Principle of operation:Windows

Data output:USB

Power supply:110-200V , 200VA , 50-60Hz

Total dimensions:900 x 900 x 1000h mm
