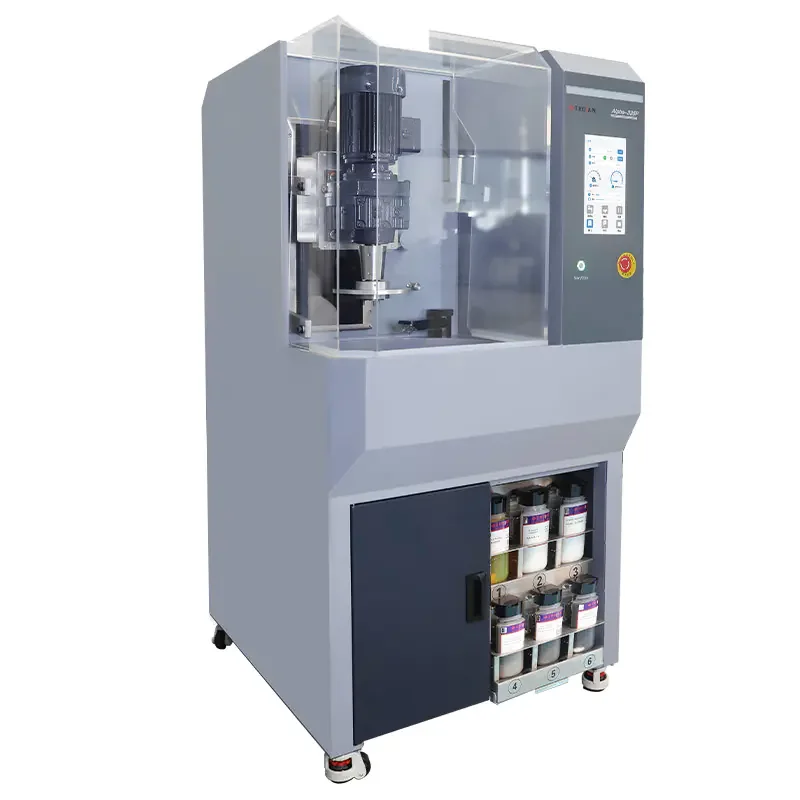

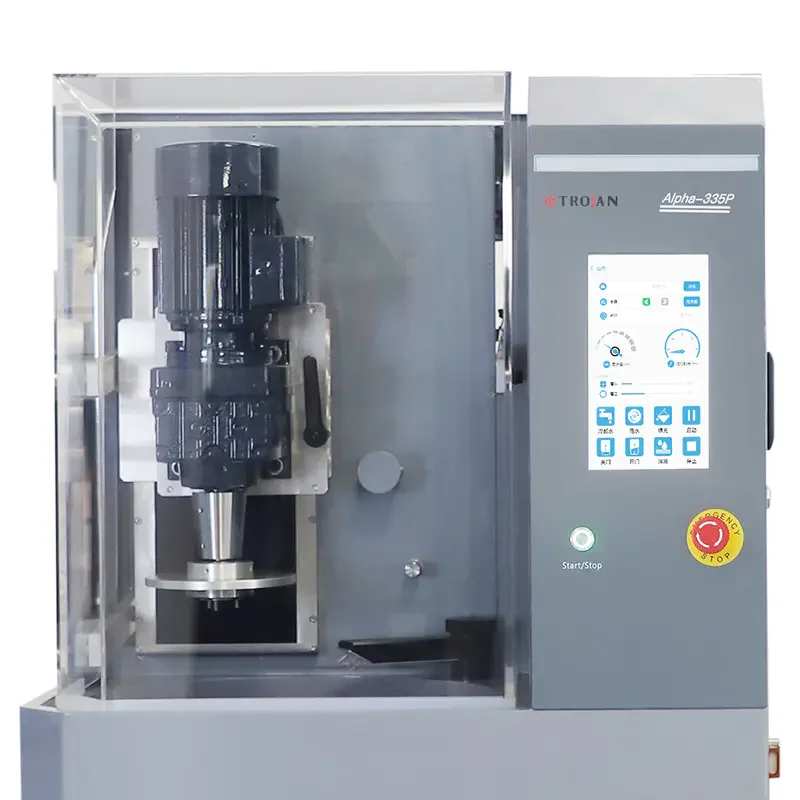

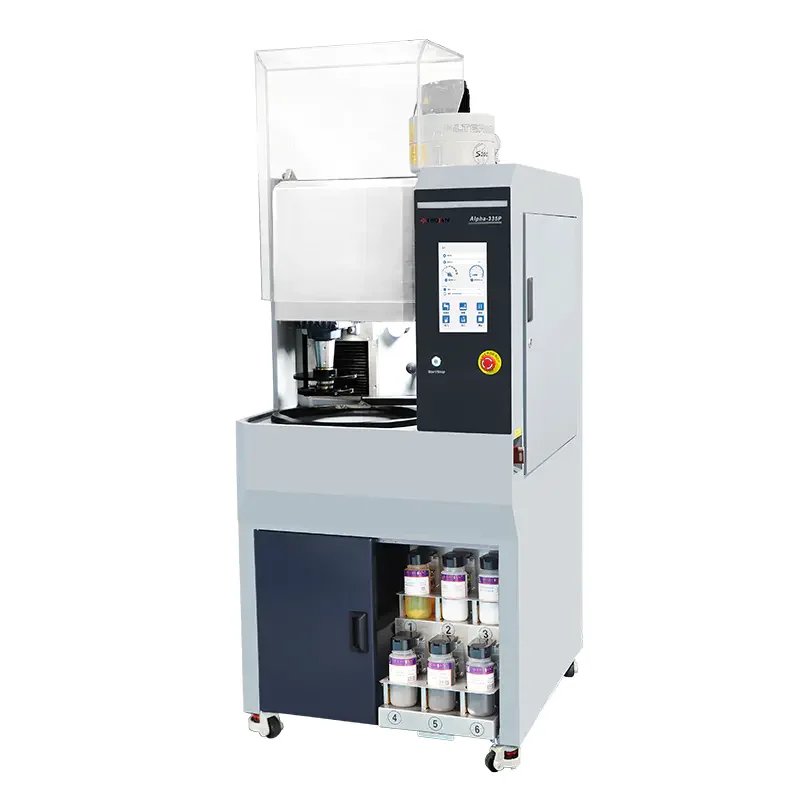

Alpha 335P Semi Automatic Floor Standing Sample Preparation Machine

£0.00

Alpha-335P abrasive polishing machine is an automatic device used for rapid grinding and polishing of samples.  This device is very suitable for laboratories or workplaces that perform testing on large samples or large quantities of samples.  Accurate and reliable grinding and polishing ensure the repeatability of the samples and improve the preparation efficiency of the samples.

Alpha-335P abrasive polishing machine is an automatic device used for rapid grinding and polishing of samples.  This device is very suitable for laboratories or workplaces that perform testing on large samples or large quantities of samples.  Accurate and reliable grinding and polishing ensure the repeatability of the samples and improve the preparation efficiency of the samples.

Request a Quote

Technical Specifications

ALPHA-335P

Working disc - Diameter - 300 or 350mm

Rotational speed - 10-600rpm

Rotation direction - Counterclockwise

Motor power (S1) - 2.2kw

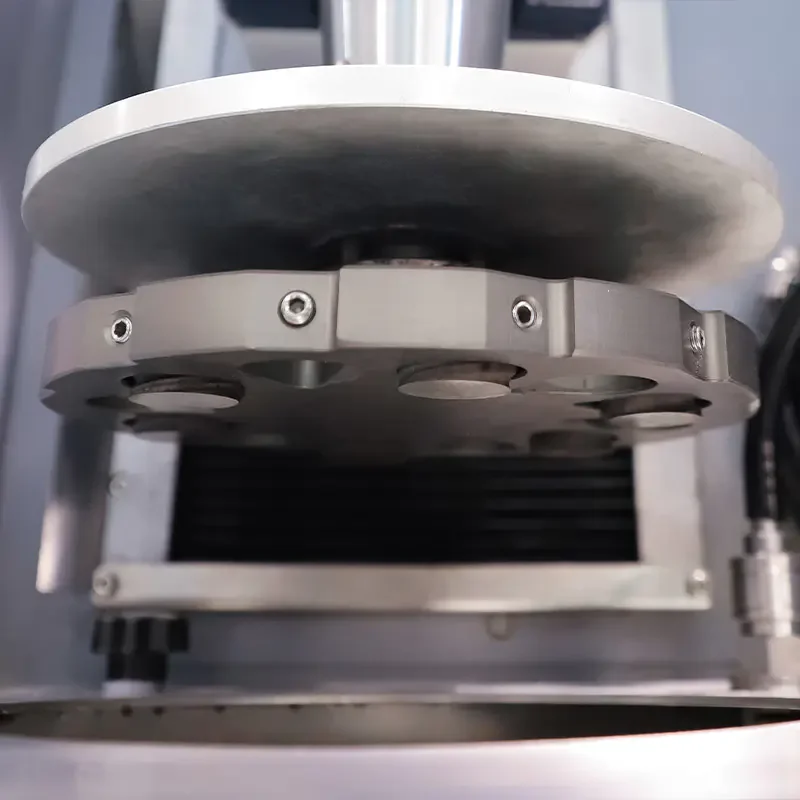

Sample holder - Sample holder diameter - 160mm or 200mm

Maximum height of the sample - 40mm

Loading Force - 50-700N

Rotational speed - 10-125rpm

Rotation direction - Clockwise/counterclockwise

Motor power - 0.37kw

Torque - 19NM

Offset distance - 0-80mm

Dosing system - Quantity - 6 sets

Flow rate - 0.1-35ml/min

Volume - 500ml

Mixing+high flow rate - 3 sets

Liquid level detection - Available

Pump tube cleaning - Available

Operating environment - Ambient temperature - 5-40°C

Humidity - <85% relative humidity, no condensation

Power Supply - Voltage - 3x380V+1PE+1N

Rated power - 3kw

Water supply - Water pressure - <0.3Mpa

Water tank [optional] - Volume - 60L

Flow rate - 45L/min

Filter accuracy - 200 mesh

Air supply - Air pressure - 0.6–0.8Mpa

Maximum gas consumption - 20Lmp

Exhaust [optional] - Air volume - 180m³/h

Power - 0.18kw

Dimension [Cover closed] - WxDxH - 80x90x165cm

Weight - 485kg
