ATI B3000 automatic Brinell hardness tester

ATI B3000 is an automatic Brinell hardness tester, fully functional and easy to use, making it the best choice for efficiency and to measure any surface on large or small products.

Simply select the desired hardness scale and press the START button. The tester automatically positions the test piece against the indenter, initiating the loading cycle with no manual effort required.

The integrated turret efficiently manages indenter and objective switching, ensuring seamless operation. By touching the indentation image, you can instantly view the results on the large graphic display. Once the measurement is complete, the ATI B3000 is ready for the next test, enhancing your productivity.

With its combination of performance and user-friendliness, the ATI B3000 hardness tester is the ideal solution for accurately measuring hardness on various surfaces, whether for large or small products. Choose the ATI B3000 for reliable and efficient Brinell hardness testing.

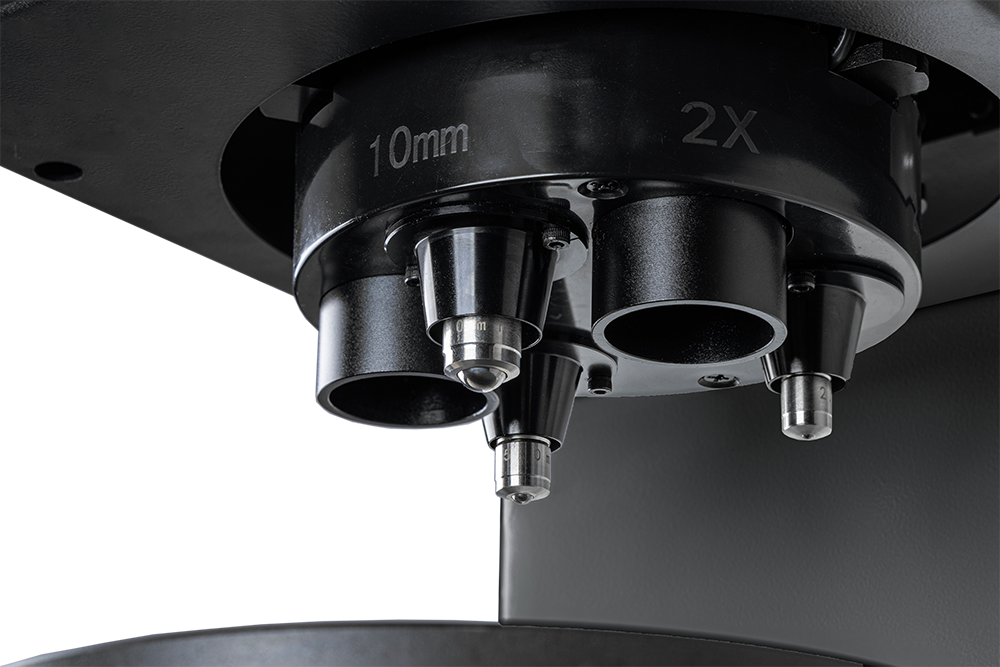

ATI B3000 is equipped with a multi-positions automatic turret, which has 5 steps: 3 indenters for Brinell hardness tests and 2 optic lens for the indentation reading (20X 40X).

Its turret has a 360° horizontal rotation with indenter and lens.

During the Brinell test cycle, ATI B3000 is fully autonomous and motorized: just push the START button and the head performs the test cycle in automatic succession without breaching a phase and with automatic switching for a fully automatic and motorized test cycle.
