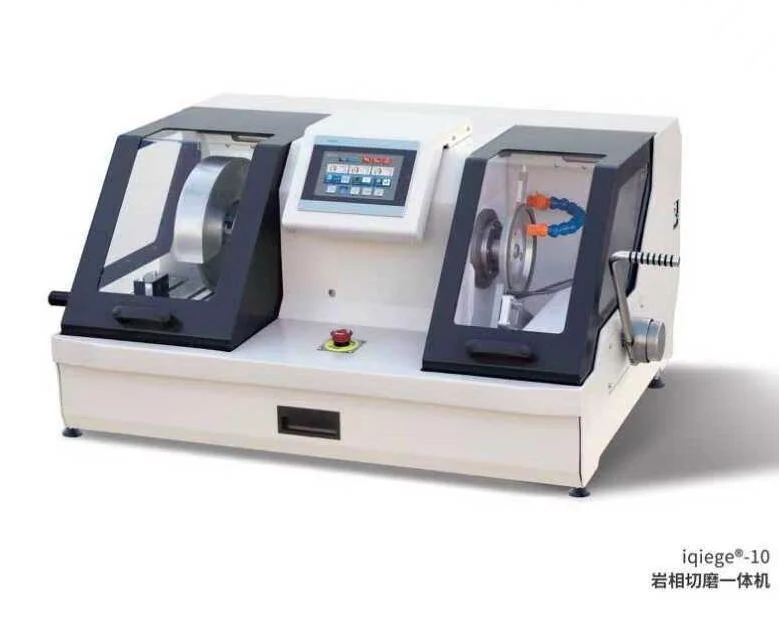

iqiege -10 petrographic cutting and grinding machine

This machine is suitable for cutting all kinds of rocks to observe the petrographic structure. This machine has independent cutting chamber and grinding chamber, equipped with cooling device, and uses coolant to take away the heat generated during cutting, so as to avoid overheating of the sample and burning of the sample structure. This machine is easy to use, safe and reliable. It is one of the necessary equipment for making samples in factories, scientific research institutions and laboratories of colleges and universities .

iqiege -10 petrographic cutting and grinding machine

This machine is suitable for cutting all kinds of rocks to observe the petrographic structure. This machine has independent cutting chamber and grinding chamber, equipped with cooling device, and uses coolant to take away the heat generated during cutting, so as to avoid overheating of the sample and burning of the sample structure. This machine is easy to use, safe and reliable. It is one of the necessary equipment for making samples in factories, scientific research institutions and laboratories of colleges and universities .

Technical Parameters

Specification: iqiege ®-10

Input Power : Single phase AC220V 50Hz

Input Power : 2.5 KW

Cutting disc diameter: Φ250mm

Cutting spindle diameter: Φ20mm

Cutting disc size Φ2 50 ×Φ 32 ×2mm (Φ2 50 ×Φ 25.4 ×2mm can be customized)

Grinding disc diameter Φ 175 mm

Grinding disc size

Grinding and polishing disc speed ( Stepless speed change with knob ) 0- 3 000r/min

Water supply pipe Outer diameter Φ 21 mm interface

Drain Inner diameter Φ 32mm

Workbench size 300 × 2 70 mm

Cutting table travel / motion type 2 00 mm / manual Grinding table travel / motion type 10 mm / manual (accuracy 0.01 mm )

Grinding suction cup size 60 × 90 mm

T-slot dimensions Fixed suction cup 60 × 45 mm ( two slides 30 × 45 mm )

Transverse suction cup (optional ) 60 × 45 mm (travel 1 0 mm, accuracy 0.01 mm ) (Slides 30 × 45 mm , four pieces / 60 × 45 mm , two pieces)

illumination led

Water tank 6 0L ( integrated vacuum pump and vacuum separator )

Dimensions 1233 × 770 × 548

net weight 126Kg
